首页 > 供应产品 > 代理供应Autoclave Engineers 高压球阀

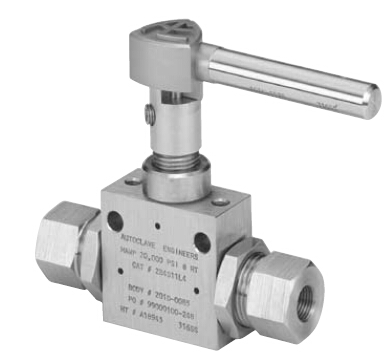

代理供应Autoclave Engineers 高压球阀
点击图片查看原图
产品: 浏览次数:160代理供应Autoclave Engineers 高压球阀
品牌: Autoclave Engineers
材质: 不锈钢
品牌: Autoclave Engineers
单价: 面议
最小起订量:
供货总量:
发货期限: 自买家付款之日起 3 天内发货
有效期至: 长期有效
最后更新: 2023-11-01 10:24
  询价
详细信息
代理供应Autoclave Engineers 高压球阀
Autoclave Engineers 高压阀

Autoclave Engineers ball valve球阀


类型:两通阀、三通阀、四通阀、DBB阀
最大工作压力:20,000psi(1379bar)
工作温度范围:0°F (-17.8°C) 到500°F (260°C)
连接尺寸:1/8”到1”
流通尺寸:0.094”(2.39mm)到1.00”(25.4mm)
材质:316SS



High Pressure Ball Valves on Autoclave Engineers, Fluid Components Div. Of Snap-tite Inc.

High Pressure Ball Valves

2-Way High Pressure Ball Valves

1/4", 3/8", 1/2" and 1" to 20000 psi (1379 bar)
High pressure manually operated 2-way ball valves. 1/4", 3/8", 1/2" and 1" with working pressures to 20,000 psi (1379 bar). Features our unique one-piece trunio mounted stem.



3-Way High Pressure Ball Valves

3/16", 3/8" and 1/2" to 20000 psi (1379 bar)
High pressure manually operated 3-way ball valves. 1/4", 3/8" and 1/2" with working pressures to 20,000 psi (1379 bar). Features our one-piece trunio mounted stem with 90o diverter and 180o turn switching variations. Special material, seals for high temperature applications, and subsea ball valve models are available.



4-Way High Pressure Ball Valves

3/8" to 10000 psi (690 bar)
High pressure manually operated 4-way ball valves for pressures up to 10,000 psi (690 bar). 3/8" port size features our one-piece trunio mounted stem in two flow variations: 4-way crossover (90o turn) and 4-way switching (180o turn).



Double Block and Bleed Ball Valves

3/8" to 15000 psi (1034 bar)
High Pressure manual double block valve to 15,000 psi (1034 bar), two stem ball valve with a needle vent valve. One piece trunnion mounted stem design eliminates shear failure and reduces the effects of side loading found in two piece designs. Convenient for blocking and bleeding applications such as pressure gauge testing, monitoring, chemical injection and drain line isolation.

Autoclave球阀-中国总代理的详细描述:

Autoclave球阀规格
类型:两通阀、三通阀、四通阀、DBB阀
最大工作压力:137.9 MPa
工作温度范围:0℉ (-17.8℃) 到500℉ (260℃)
连接尺寸:1/8”到1”
流通尺寸:0.094”(2.39mm)到1.00”(25.4mm)
材质:316SS

Autoclave高压阀门:高压针阀、高压球阀、安全阀、仪表阀、特制的阀和阀组、接头、管子、压力表、热电偶、气动执行器。
应用领域:海上油井.石油化工及航天领域。

Autoclave高压球阀型号

4B6S10L8 4BS6S10L8 4B6S10M6 4BS6S10M6 4B6S10M94BS6S10M94B6S10M12 4BS6S10M12 ; 4B6S10P4 4BS6S10P4 4B6S10P6 4BS6S10P64B6S10P84BS6S10P8

3B3S15L2 3BD3S15L2 3B3S15L4 3BD3S15L4 3B3S15L63BD3S15L63B3S10L8 3BD3S10L8 ; 3B3S20M4 3BD3S20M4 3B3S20M6 3BD3S20M63B3S20M93BD3S20M9 3B3S20H4 3BD3S20H4
3B3S20H6 3BD3S20H6 3B3S20H93BD3S20H93B3S15P2 3BD3S15P2 3B3S15P4 3BD3S15P4
3B3S15P6 3BD3S15P63B3S15P83BD3S15P8 3B6S10L8 3BD6S10L8 3B6S15M6 3BD6S15M6
3B6S15M93BD6S15M93B6S15M12 3BD6S15M12 3B6S15P4 3BD6S15P4 3B6S15P6
3BD6S15P63B6S15P83BD6S15P8 3B8S10M12 3BD8S10M12 3B8S10M16
3BD8S10M163B8S10P123BD8S10P12 3B8S10P16 3BD8S10P16

2B4S15L2 2B4S15L4 2B4S15L6 2B4S10L8 2B4S20M42B4S20M62B4S20M9 2B4S20H4 2B4S20H6
2B4S20H9 2B4S15P2 2B4S15P42B4S15P62B4S15P8 2B6S10L8 2B6S20M6 2B6S20M9 2B6S20M12
2B6S15P42B6S15P62B6S15P8 2B8S15M12 2B8S15M16 2B8S10P12
2B8S10P162B16S10MA242B16S10S16 2B16S10P16 2B12S15M16
2B12S15P82B12S10P122B12S10P16

6DB10L8P4 6DB15M6M4 6DB15M9M4 6DB15M12M46DB15P4P46DB15P6P4 6DB15P8P4

Autoclave高压球阀型号

4B6S10L8 4BS6S10L8 4B6S10M6 4BS6S10M6 4B6S10M94BS6S10M94B6S10M12 4BS6S10M12
4B6S10P4 4BS6S10P4 4B6S10P6 4BS6S10P64B6S10P84BS6S10P8

3B3S15L2 3BD3S15L2 3B3S15L4 3BD3S15L4 3B3S15L63BD3S15L63B3S10L8 3BD3S10L8
3B3S20M4 3BD3S20M4 3B3S20M6 3BD3S20M63B3S20M93BD3S20M9 3B3S20H4 3BD3S20H4
3B3S20H6 3BD3S20H6 3B3S20H93BD3S20H93B3S15P2 3BD3S15P2 3B3S15P4 3BD3S15P4
3B3S15P6 3BD3S15P63B3S15P83BD3S15P8 3B6S10L8 3BD6S10L8 3B6S15M6 3BD6S15M6
3B6S15M93BD6S15M93B6S15M12 3BD6S15M12 3B6S15P4 3BD6S15P4 3B6S15P6
3BD6S15P63B6S15P83BD6S15P8 3B8S10M12 3BD8S10M12 3B8S10M16
3BD8S10M163B8S10P123BD8S10P12 3B8S10P16 3BD8S10P16

2B4S15L2 2B4S15L4 2B4S15L6 2B4S10L8 2B4S20M42B4S20M62B4S20M9 2B4S20H4 2B4S20H6
2B4S20H9 2B4S15P2 2B4S15P42B4S15P62B4S15P8 2B6S10L8 2B6S20M6 2B6S20M9 2B6S20M12
2B6S15P42B6S15P62B6S15P8 2B8S15M12 2B8S15M16 2B8S10P12
2B8S10P162B16S10MA242B16S10S16 2B16S10P16 2B12S15M16
2B12S15P82B12S10P122B12S10P16

6DB10L8P4 6DB15M6M4 6DB15M9M4 6DB15M12M46DB15P4P46DB15P6P4 6DB15P8P4

代理供应Autoclave Engineers 高压球阀
代理供应Autoclave Engineers 高压球阀
代理供应Autoclave Engineers 高压球阀
